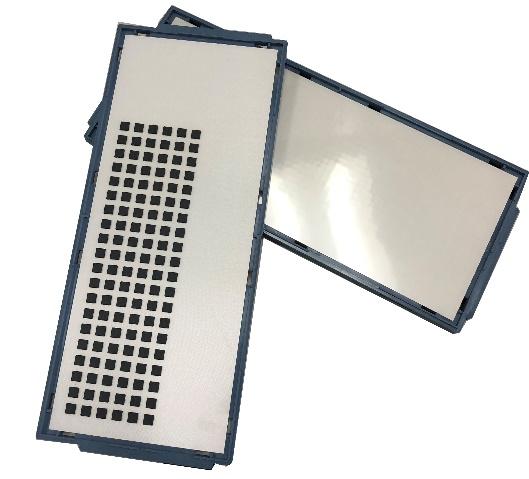

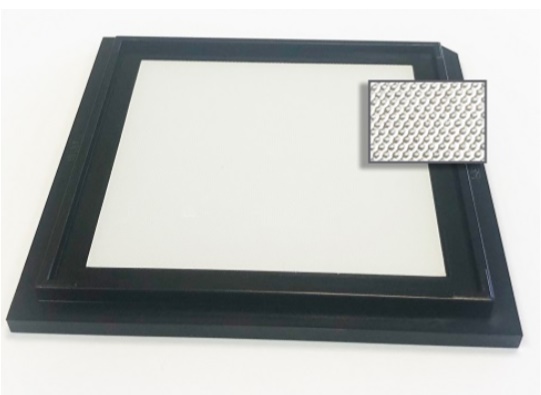

BTXF Texturized Device Carrier Products ☰ Quick Links × Quick Links E-Store Request Quote Request Sample Contact Technical Support Product Selection Wizard Calculate Number Of Devices/Carrier Gel-Pak Brochure VERTEC® Textured Device Carrier (BTXF Series) Gel-Pak’s BTXF products are ideal for use as a universal carrier for device handling and transport applications. Based on our proprietary Vertec® material, these carriers use non-adhesive properties of a micro-textured elastomer to hold components in place. Ideal for: Universal handling solution. Devices that are handled both by hand and with automated equipment. Multiple device sizes (no pockets) in same carrier. Request a Quote Request a Sample BTXF Details BTXF Applications Datasheets Resources BTXF Sizes 2”, 4”, JEDEC Standard Tray Elastomer Proprietary White Vertec® TPE Device Sizes >800 µm Tray Configurations 2”, 4”, and JEDEC Black Conductive (Can also be purchased as a film) Surface Resistance For EUL, EL: < 1010 (ohms) For M, H: > 1012 (ohms) Shipping/Storage Temperature -10 to +50˚ C Tack Levels High (H), Medium (M), low (EL), Ultra-Low (EUL) Gel-Pak BTXF carriers are an ideal universal fixture for device processing and transport in both manual and automated applications. Die Sort Semiconductor Test Fixture Component Kitting Internal Handling during Processing Index #TD-006 DescriptionRoHS Test Report AvailabilityDownload Index #TD-017 DescriptionESD Properties AvailabilityDownload Index #TD-018 DescriptionBox/Tray Material Temperature Properties AvailabilityContact Factory Index #TD-019 DescriptionInternal Clearances and Useable Areas AvailabilityDownload Index #TD-029 DescriptionREACH Test Report AvailabilityDownload Index #TD-047 DescriptionVertec TPE Product SDS AvailabilityContact Factory Index #TD-069 DescriptionVTX Outgas AvailabilityDownload Index #TD-080 DescriptionTextured Vertec Film (Preliminary) AvailabilityDownload Index #TD-103 DescriptionVMF_Outgas AvailabilityContact Factory Index #TD-104 Description VMF Tray Product Datasheet AvailabilityDownload Index #TD-105 Description TXF Film Outgas AvailabilityContact Factory Index #TD-108 DescriptionVertec BTXF Carriers AvailabilityDownload Index #TD-113 DescriptionBMP Bumped Die Carrier AvailabilityDownload Index #TD-124 DescriptionTD-124 VTX Tray Product Datasheet AvailabilityDownload Index #TD-125 DescriptionTD-125 Vertec TXF Film SDS AvailabilityContact Factory Index #TD-129 DescriptionTD-129 BMP3E Die Carrier AvailabilityDownload Elastomer Technology Overview Product Selection Wizard BTXF Part Number Catalog n = Tack Level: High (H), Medium (M), low (EL), Ultra-Low (EUL) Box Materials: Conductive (C) = Black, Antistatic (AS) = Tinted/Translucent, Transparent (T) – Clear Styrene BTXF Products can be customized with a print or a grid Part Number Description Print BTXF-W-22CT-02-n 4″ x 4″ Conductive Tray w/ Transparent Hinged Box H, M, EL, EUL BTXF-W-22CC-02-n 4″ x 4″ Conductive BTXF Tray in Conductive Hinged Box H, M, EL, EUL BTXF-W-22CCT-02-n 2” x 2” Conductive BTXF Tray in Conductive Base/Transparent Lid Hinged Box H, M, EL, EUL BTXF-W-22CAS-02-n 2” x 2” Conductive BTXF Tray in Antistatic Hinged Box H, M, EL, EUL BTXF-W-22CCAS-02-n 2” x 2” Conductive BTXF Tray in Conductive Base/Antistatic Lid Hinged Box H, M, EL, EUL BTXF-W-22CT-00B-n 2” x 2” Conductive BTXF Tray w/ Transparent Lid H, M, EL, EUL BTXF-W-22CC-00B-n 2” x 2” Conductive BTXF Tray w/ Conductive Lid H, M, EL, EUL BTXF-W-22CAS-00B-n 2” x 2” Conductive BTXF Tray w/ Antistatic Lid H, M, EL, EUL BTXF-W-22CC-00A-n 2” x 2” Conductive BTXF Tray w/ “High Clearance” Conductive Lid H, M, EL, EUL BTXF-W-44CT-00B-n 4″ x 4″ Conductive Tray w/ Transparent Hinged Box H, M, EL, EUL BTXF-W-44CC-00B-n 4″ x 4″ Conductive BTXF Tray in Conductive Hinged Box H, M, EL, EUL BTXF-W-44CAS-00B-n 4″ x 4 ” Conductive BTXF Tray w/ Antistatic Lid H, M, EL, EUL BTXF-W-MT-RH5-n 12.4” x 5.35” BTXF JEDEC Tray H, M, EL, EUL BTXF-RH5 -COVER JEDEC Tray Cover Please visit Cleanroom Tape for additional information. Visit Now!
